[Industry Application] FaithTech Battery Simulator Embeds a "Precision Power Ruler" for Automotive Camera Mass Production Testing

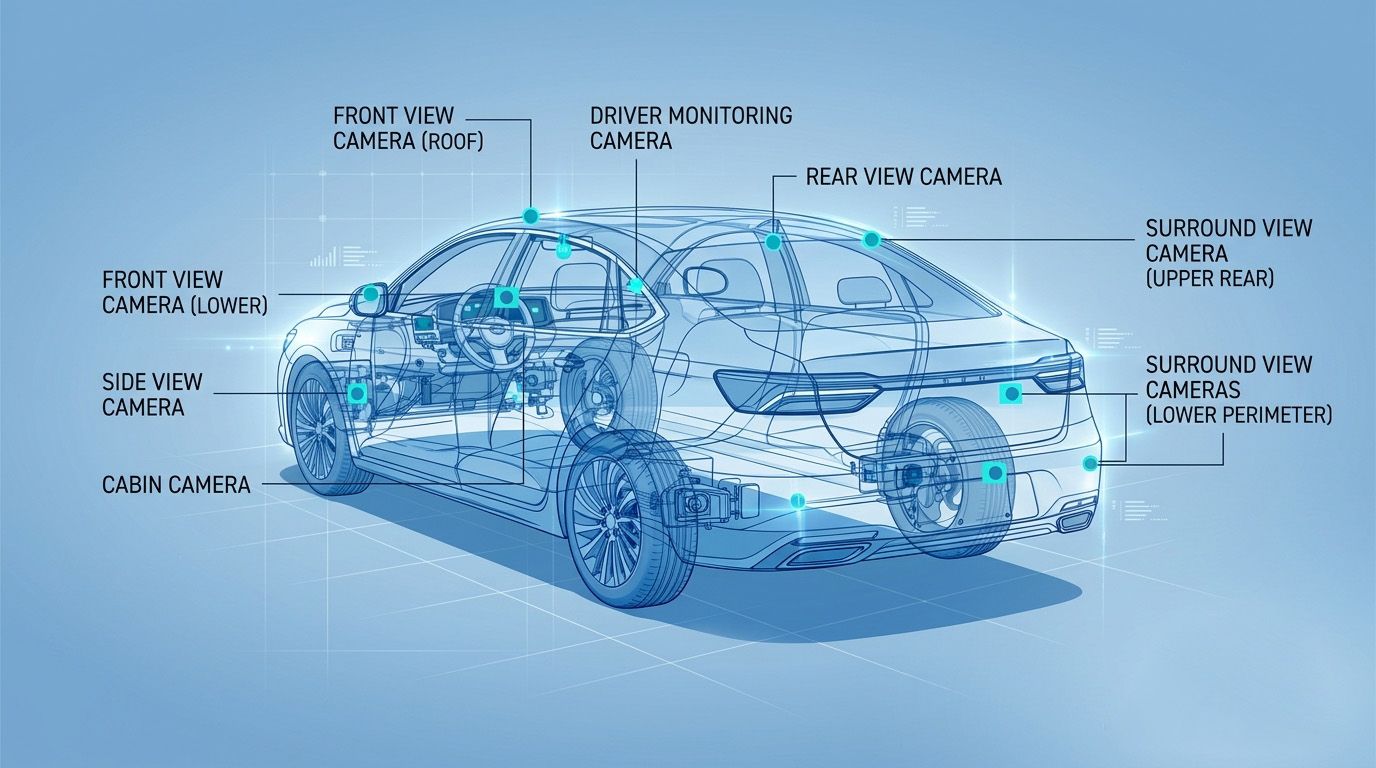

Automotive cameras serve as the "visual neural network" of modern vehicles. Their application has evolved from simple image recording to becoming a core sensory organ supporting intelligent driving, safety protection, and smart interaction. On the automated production lines for new energy vehicle cameras, every camera must undergo final functional and reliability testing before leaving the factory.

Traditional automotive camera test equipment relies on batteries or ordinary power supplies for power, which have bottlenecks in test speed, measurement accuracy, and long-term stability, making it difficult to meet the production line's requirements for "full inspection, fast inspection, and accurate inspection."

FaithTech Solution

The FaithTech FT8340 series multi-channel cell simulator was created to revolutionize this critical step. As a core programmable power supply and precision measurement module, it is integrated into the end-of-line test equipment, providing a standardized, precise, and traceable power supply environment for every camera off the production line. It is a key cornerstone for ensuring consistency in mass production.

01 End-of-Line Testing Challenges: The Triple Pressure of Speed, Accuracy, and Reliability

The requirements for end-of-line test equipment are vastly different from those for R&D validation equipment. It must simultaneously satisfy:

• Fast: The test cycle must match production line capacity, typically completing rapid cycle tests for all power conditions within tens of seconds.
• Accurate: Measurement results must be absolutely reliable, avoiding both false rejects and escapes, especially for determining μA-level sleep current.
• Stable: Equipment must operate continuously at high intensity 7x24 hours; long-term stability and consistency are crucial.

Traditional power supply solutions, due to slow response, low precision, and non-programmable waveforms, have become bottlenecks limiting the efficiency and accuracy of end-of-line testing.

02 The Core Value of the FaithTech FT8340 Multi-Channel Battery Simulator in Production Lines

When the FT8340 is integrated into end-of-line equipment, it systematically addresses the pain points of automotive camera production line testing from the following four aspects:

1. High-Speed Test Cycling

• FaithTech FT8340 Multi-Channel Battery Simulator Solution: Voltage rise time ≤1ms, supports millisecond-level operating condition switching. Via preset programs, it can automatically and seamlessly execute full-scenario tests such as start-up spikes, driving fluctuations, sleep/wake in sequence within 30 seconds. Significantly shortens single-unit test time, directly increasing overall production line throughput (UPH).

2. Accurate Microamp-Level Static Power Consumption Judgment

• FaithTech FT8340 Multi-Channel Battery Simulator Solution: μA-level current measurement precision can clearly and stably distinguish a power consumption difference of 49mW vs. 51mW, providing indisputable hard data for "Pass/Fail" decisions. Achieves high-precision full inspection of sleep current, preventing low-power defect risks from reaching the market and enhancing product reliability reputation.

3. Long-Term Operation and Absolute Consistency

• FaithTech FT8340 Multi-Channel Battery Simulator Solution: Instrument-grade high precision and stability ensure that the power supply test conditions for the 1st product tested today are identical to those for the 100,000th product tested next month. Guarantees uniform out-of-factory quality standards, eliminating batch quality variations caused by test equipment fluctuations.

4. Seamless Integration and Data Traceability

• FaithTech FT8340 Multi-Channel Battery Simulator Solution: Supports communication protocols like LAN, RS485, enabling easy integration into the production line MES system. Voltage and current curve data from each test can be uploaded, establishing a unique "power test file" for each camera. Achieves full traceability of production data, providing core data support for quality analysis and process improvement.

03 End-of-Line Application: Fast, Fully Automatic Reliability Pass Test

On the production line of a leading automotive camera company, the end-of-line equipment integrated with the FaithTech FT8340 cell simulator performs the following "rapid pass test" for each automotive camera:

1. Driving Condition Test

• Parameter Settings: Use the FT8340 battery simulator to output 13.5V±0.5V in series, simulating scenarios such as a 16V start-up spike (100ms), 500mA-2A current fluctuation during acceleration, and 9V low voltage during deceleration, covering extreme temperatures from -40℃ to 85℃.
• Test Metrics: Camera image frame rate stable at 30fps, CAN packet loss rate ≤0.1%, deviation between simulator voltage/current and auxiliary equipment data ≤2%.

2. Parking Surveillance Condition Test

• Parameter Settings: Simulator output 12V±0.5V, activate motion detection trigger test, 8-hour time-lapse recording, and 12V-11V low voltage protection test.
• Test Metrics: Motion detection response ≤200ms, average power consumption for time-lapse recording ≤150mW, low voltage protection threshold precise with no data loss.

3. Sleep Condition Test

• Parameter Settings: Simulator stable output 12V, trigger camera sleep for 24 hours, wake via CAN command/collision signal (10 times each).
• Test Metrics: Sleep power consumption ≤50mW, wake response ≤500ms with 100% success rate, leveraging the simulator's μA-level current measurement for precise monitoring.

Customer Value Realized

1. Efficiency Improvement: Single-unit test time reduced from several minutes with traditional manual methods to under 45 seconds, a test efficiency increase of over 80%.
2. Quality Improvement: Achieved 100% full inspection for the critical indicator of sleep power consumption; related product complaint rates dropped to near zero.
3. Management Upgrade: All test data digitized and traceable, achieving a digital closed-loop for quality management.

Conclusion: From "Verification Pass" to "Data-Driven Shipment"

Integrating the FaithTech FT8340 battery simulator into end-of-line test equipment means far more than just replacing a power supply. It signifies:

1. Standardization of Test Actions: Solidifying complex reliability scenarios into standardized, high-speed, automatically executed test procedures.
2. Data-Driven Quality Criteria: Transforming the subjective judgment of "whether it's stable" into an objective ruling based on precise μA and mV level data.
3. Tangible Product Value: Attaching a traceable "power health report" to each shipped camera, serving as a powerful endorsement of its reliability to customers.

---
