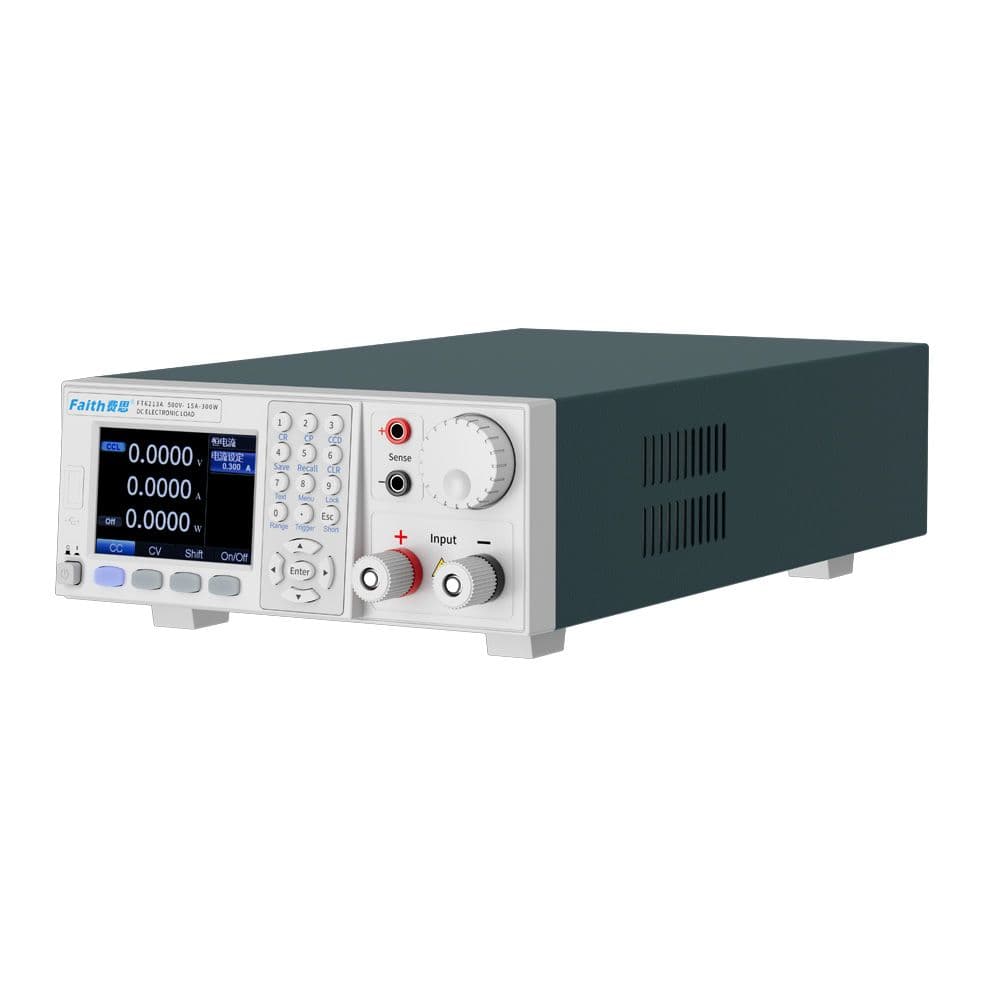

The FT6200A series of low-power electronic loads is a desktop-grade electronic load with superior utility and versatility. Can be widely used in switching power supplies, adapters, LED drivers, 3C batteries, supercapacitors, power electronic devices, solar cell modules, chargers and other products research and development, production, quality inspection and other testing links。The product is equipped with TFT screen and English and Chinese menu interface, which is convenient and intuitive to operate, and is a necessary common configuration on the desk of power electronics engineers.

The FT6200 series is equipped with RS232 interface and supports standard SCPI command. All functions of panel operation can be realized through SCPI command, which provides convenience for the establishment of intelligent test platform and the secondary development of users.

| Steady-state function

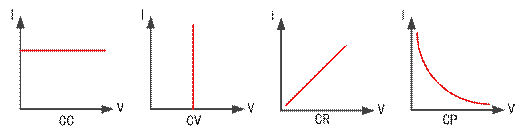

FT6200 series electronic load has four test modes of constant current, constant voltage, constant resistance and constant power, which can meet a wide range of test requirements. Constant current and constant resistance modes can be used to test whether the output voltage of the voltage source maintains a stable output under different load conditions. For battery chargers and adapters, constant voltage mode can change the output voltage of the charger and adapter to verify that the output current is correct

| Dynamic function

The FT6200 series of electronic loads provides programmable dynamic testing capabilities. Dynamic test function includes continuous, pulse, flip three ways, support load slope setting. The dynamic mode is used to simulate various on-load mutations and anomalies, and is suitable for testing the dynamic characteristics of the power supply, the stability of the power supply, the protection point and protection time of the battery, and the burst on-load simulation of various pulses.

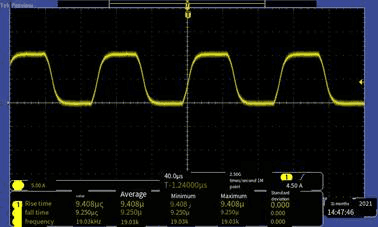

10kHz Dynamic load

| Battery test function

To facilitate battery testing, the FT6200 series offers a battery test function. Battery test includes: battery internal resistance test and battery capacity test. The battery capacity test provides three discharge modes of fixed current, fixed resistance and fixed power, and can set the discharge cutoff conditions: cutoff voltage, cutoff time and cutoff power. If any of the three conditions are met, the discharge stops. During the discharge process, the load automatically records voltage, current, time, AH and other parameters. Below the protection voltage, the load automatically stops testing. With software, more parameters can be tested and analyzed

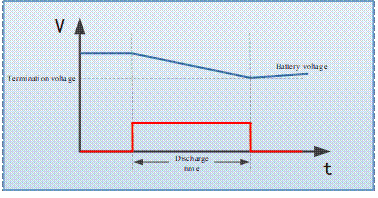

Voltage and current curve during capacity test

|OCP/OPP test

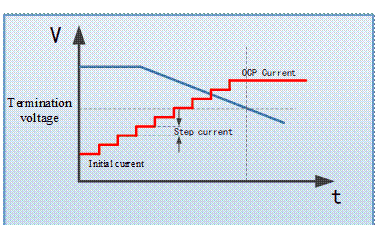

The FT6200 series load itself provides OCP testing, which is mainly applied to the testing of BMS, overcurrent and overpower points of the power module. During OCP testing, the overcurrent protection point of the tested object will be automatically found and recorded in IMAX, PMAX. Combined with the high and low limit values of the test parameters, it can automatically determine whether the test results exceed the set specifications, saving time for product design verification and production line system testing

|Sequence function

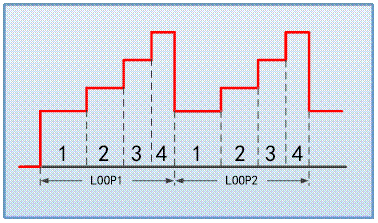

The FT6200 series of electronic loads provides serial testing capabilities. Users can edit the test sequence of a load to simulate various changes at the load input. The electronic load can store up to 10 sequence files, each file can perform up to 100 steps, the maximum time of a single step can be set to 50us ~ 36000s, and at the same time support file link and other sequence editing functions. Suitable for all kinds of complex on-load tests.

| Quick call

Quick call function supports CC/CV/CR/CP and other stationary parameter setting, supports OCP, sequence, automatic test, battery internal resistance, battery capacity and other functions, one-click call has been set functions and corresponding parameters. The quick call is suitable for testing in R&D, testing, quality and incoming material inspection departments. Quick calls reduce the number of Settings and operational loads in the test, which can reduce the probability of setting errors, improve test efficiency and test accuracy

| Automatic test

The FT6200 series features flexible automated testing. In the automatic test, CC, CV, CR, CP and other test modes are included, which can compare the test parameters with the corresponding upper and lower limits, and finally display the test results in the form of PASS or FAILED. The fully automatic operation mode can greatly improve the test efficiency.

|SCPI with remote control

The FT6200 series supports standard SCPI commands, through which all functions of panel operations can be implemented. This provides convenience for the establishment of intelligent test platform and the secondary development of users. The FT6200 series provides easy remote control of electronic loads via the RS232 interface.
