FaithTech AI Server Power Test System Solution
Complete AI server power test architecture for PSU, Power Shelf, Power Rack, BBU, chip power, and high-power DC distribution validation.
Target Applications
FaithTech covers the complete AI server power chain from PSU modules to rack-level power, BBU, chip power, and energy storage systems.
PSU
Power Supply Unit M-CRPS Dynamic Load Testing
Power Shelf
OCP ORV3 33kW / 72kW Output Hot-swap and Redundancy
Power Rack
Rack-level Power Distribution Power Shelf Parallel Systems PDU and Monitoring
BBU
Battery Backup Unit 48V and 400V/800V Architectures Charge / Discharge Testing
Chip Power
GPU / CPU Transient Load High-Slew-Rate Electronic Loads VRM Validation
Integrated Hardware Matrix
FaithTech source, load, battery simulator, data acquisition, and automation hardware for AI server PSU, rack power, BBU, and chip power validation.

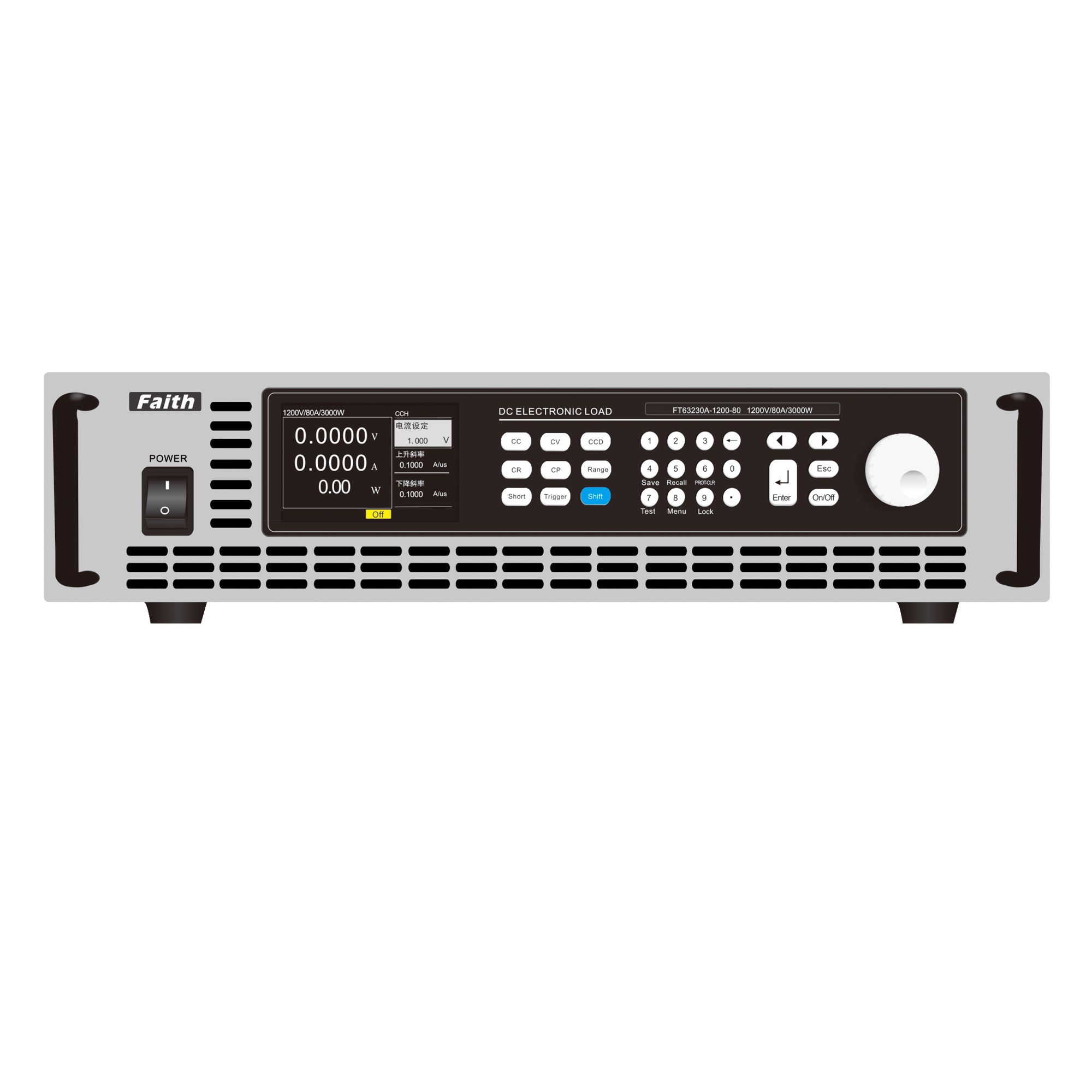

FT63200H Series

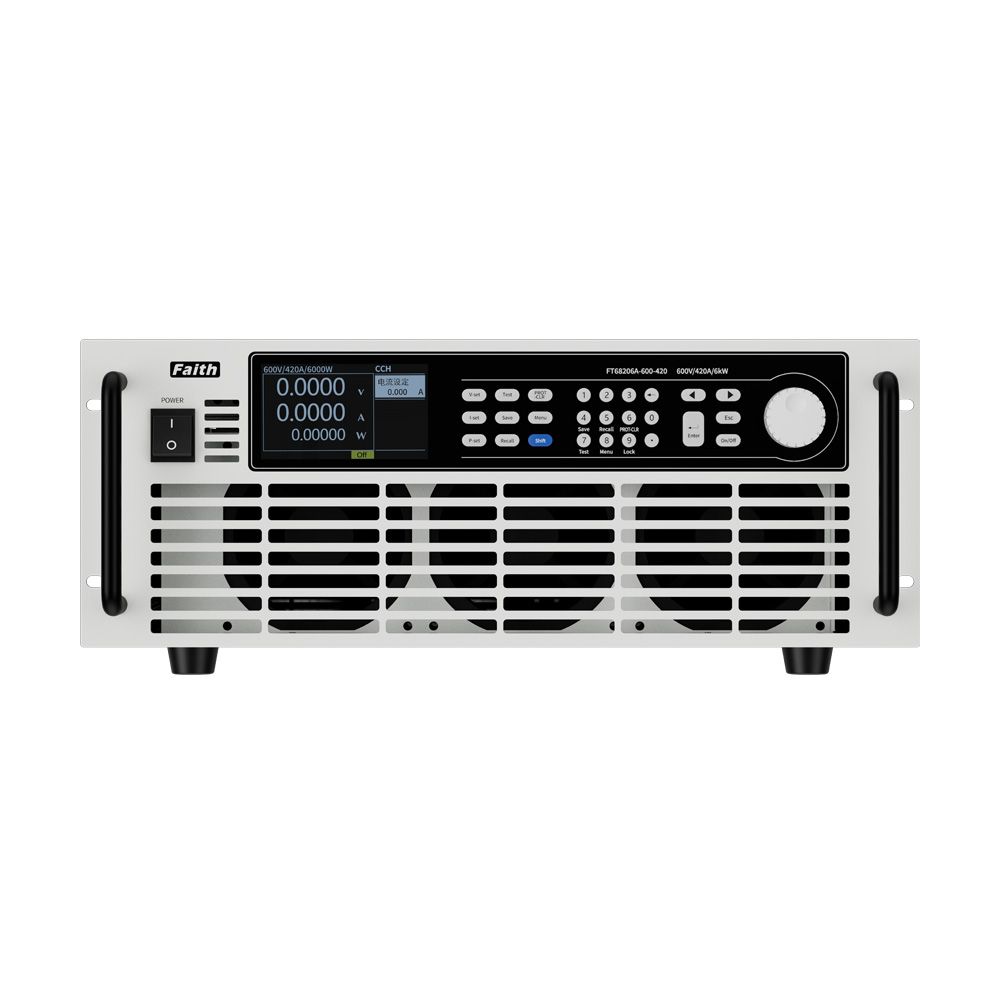

FT68200NZ Series

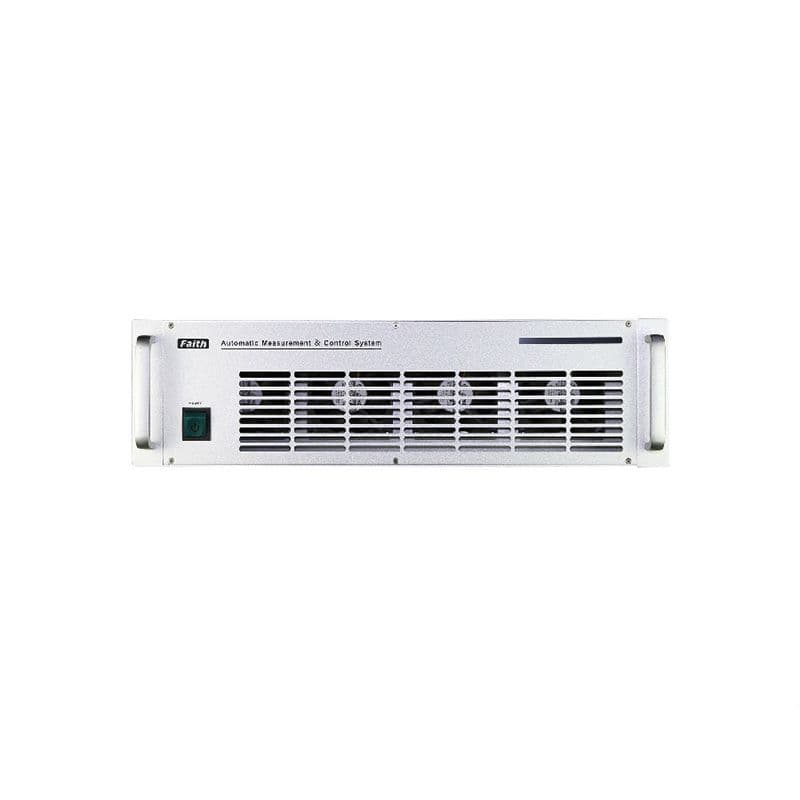

FTM8000 Series
AI Server Power Test Capabilities
High-Slew-Rate PSU Dynamic Testing
FT63200H and FT68200H electronic loads simulate GPU and CPU transient power changes for PSU voltage stability and dynamic response validation.
Power Shelf and Power Rack Validation
Supports OCP ORV3-style centralized 48V and high-power rack power testing, including redundancy, hot-swap, and high-current distribution verification.
BBU Charge and Discharge Testing

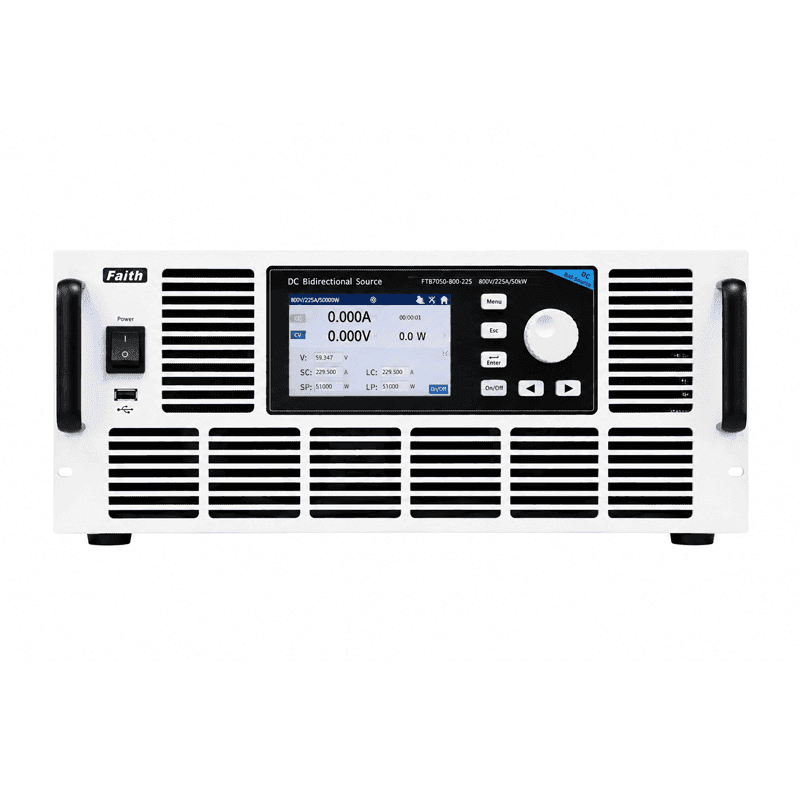

FTB9000, FTB7000, and FTM series instruments support BBU charge/discharge, switching time, transient response, and grid simulation tests.
Automated Data and Control Platform
Supports custom reports, data dashboards, one-click tests, barcode scanning, single-channel and multi-channel workflows, and custom fixtures.
PSU Power Output Characteristics
Validate static output, dynamic response, and voltage stability under AI chip load transients.
PSU Overcurrent Point Test
Validate low-voltage high-current behavior including 0.2V @ 5000A and 0V @ 3000A scenarios.
PSU Stability Test
Run long-duration high-current and transient-load tests for AI data center power reliability.
PSU Efficiency Conversion Test
Measure conversion efficiency under 220V/50Hz and 230V/60Hz input conditions, with reference efficiency up to 93%.
Power Shelf / Power Rack Test
Validate OCP ORV3 power shelves up to 33kW or 72kW and rack-level power systems reaching hundreds of kilowatts.
BBU Test
Verify charge/discharge performance, switching time, transient response, and 48V or 400V/800V high-voltage architectures.
Scale Your AI Testing Infrastructure
Custom modular configurations available for specific R&D or mass-production requirements. Contact our technical team for a solution architecture.
