FTB9000 series Wide range high power bidirectional programmable DC power supply

| Sketch

FTB9000 series products are a wide range of high power bidirectional programmable DC power supply with both DC power supply and feedback load function. It can not only realize the function of Source, but also feed the absorbed energy back to the power grid as a feedback load to realize the bidirectional flow of energy.

       FTB9000 series adopts full digital control, high operation precision, fast response, wide output adjustment range, programmable output function, can realize the source and load dual quadrant seamless switching, at the same time with rich test functions and simple human-computer interaction interface, in automotive electronics, energy storage, fuel cell and other high-power test scenarios have a wide range of applications.

| Feedback load function

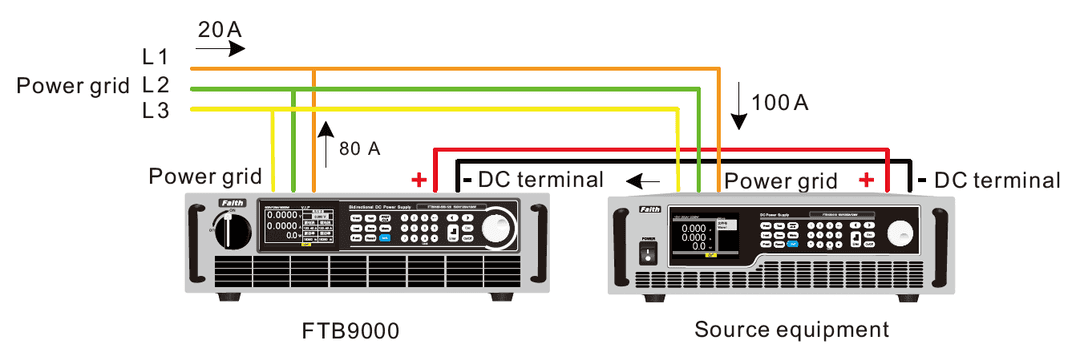

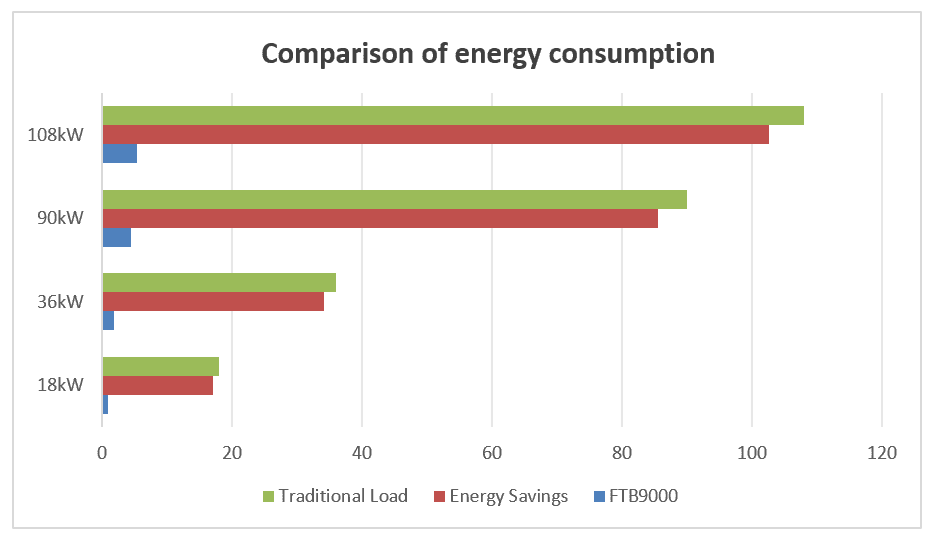

FTB9000 series products have the feedback load function, which can return the energy of the equipment under test to the factory Intranet for direct use, rather than dissipate it as heat. Its energy feedback conversion efficiency is as high as 95%, which can not only greatly reduce the cost of electricity for users, but also avoid the use of air conditioning and other refrigeration systems and reduce noise.

At the same time, when working as a feedback load, it has four basic working modes of constant current, constant voltage, constant power and constant resistance, which can meet a wide range of test needs.

(Note: the above two physical drawings of Faith are used.)

| Double quadrant, wide range

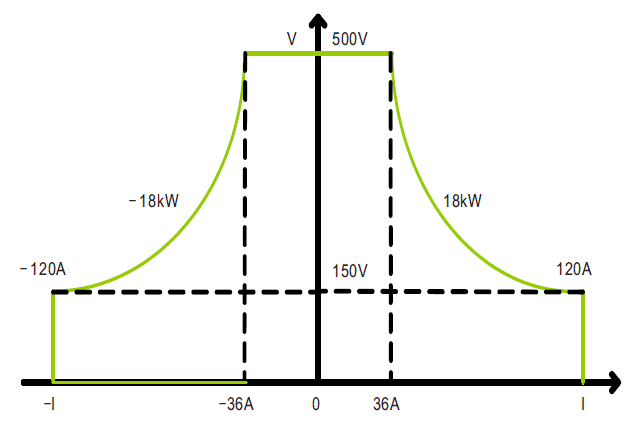

FTB9000 series products have dual quadrant working characteristics, can be used as DC power output energy, and can be used as feedback load to absorb energy. At the same time, FTB9000 has a wide working range, with more than 3 times the wide range of output range, one power supply can cover more applications, saving costs for users.

| Seamless switching of two-way current

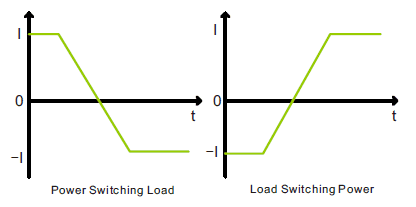

FTB9000 automatic source load function, you can quickly and seamlessly switch automatically. The conventional DC power supply and load will produce a short step at 0A when the positive and negative current are switched, resulting in discontinuous current commutation. FTB9000 not only has the dual-quadrant working ability, but also has the high-speed current switching ability, which can realize the seamless connection of positive and negative current switching, effectively avoid voltage or current overshooting, and is widely used in the test of motor, battery pack, BMS and energy storage system.

|3U/18kW high power density

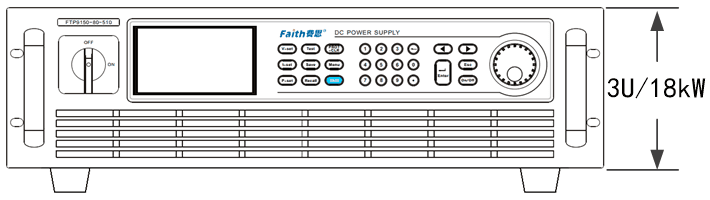

The FTB9000 series provides a high power density of 3U/18kW, with accurate output, fast response and low ripple noise. The wide range of voltage 80V ~ 2250V and current 25A ~ 4500A is suitable for every test and verification link from design to production process.

| Sequence and waveform function

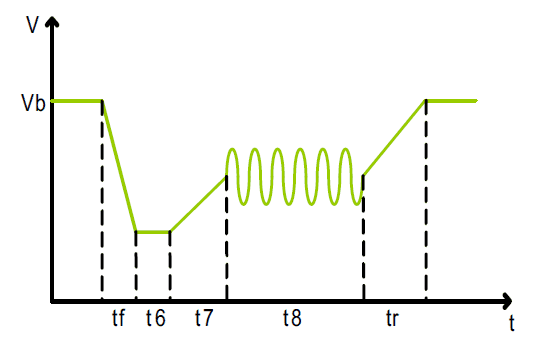

FTB9000 provides users with sequence editing functions for power supply interruptions, instantaneous drops, and other voltage and current changes. A total of 10 sequence files, each file 100 steps, support cycle, link to facilitate the realization of complex waveform output.

|Battery charge/discharge test

Due to its unique bidirectional design, FTB9000 series has charge/discharge test function, which is suitable for various kinds of batteries and energy storage equipment charge/discharge test.

|CV and CC are preferred

When the power output is connected to the inductive or capacitive load, the output current or voltage will overshoot to a certain extent, which will trigger the protection of the device under test, or even damage the device under test. FTB9000 series with CV, CC output priority function to effectively inhibit the output overshoot and the impact.

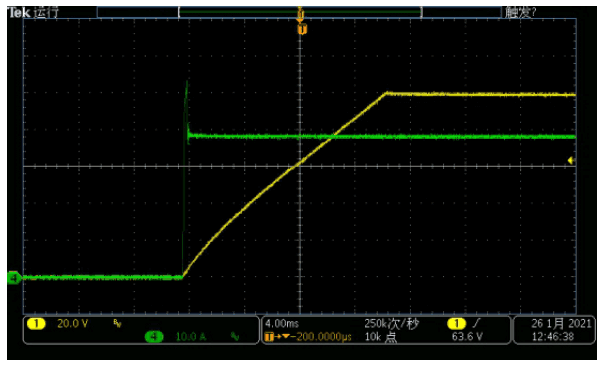

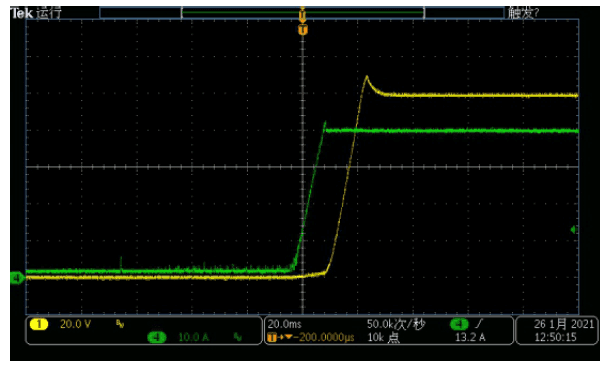

CV priority (high speed build voltage, current overshoot) CC priority (high speed build current, voltage overshoot)

| Master/slave parallel function

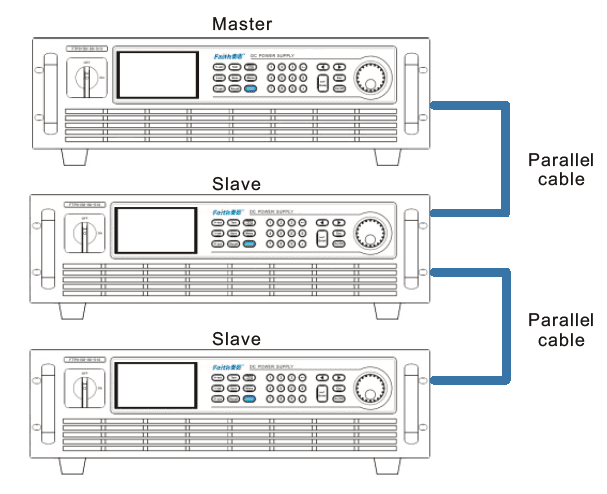

FTB9000 series power supply provides master and slave parallel mode, supporting 10 power supplies of the same model for parallel operation, so that users can achieve more power expansion. When the parallel operation, the host automatically displays the parameters, and the slave automatically copies the set parameters of the host to achieve automatic current sharing.

|Photovoltaic array simulation function

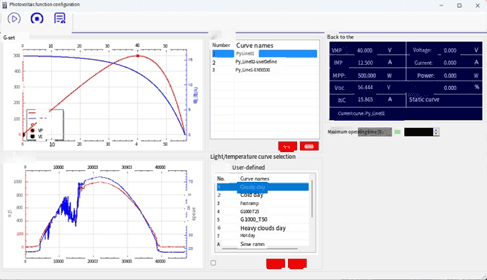

FTB9000 series comes standard with feature-rich "Faith Power Demonstration Platform" with basic PV function for testing PV inverters. With the host computer demonstration platform, more test functions can be realized, such as dynamic MPPT, typical weather data, custom light/temperature change curve and so on. [Y1] For more complex PV test functions, you can choose the Fiesta Solar PV Matrix simulation software.

Faithtech Solar PV Matrix Simulation Software (optional)

  Faithtech Solar PV Matrix simulation software is a photovoltaic test software supporting Faithtech power supply series. It adopts simple and intuitive graphical interface to present users with intuitive and friendly man-machine interface. Users can easily use the software to output, measure and display the maximum power tracking status and numerical records of photovoltaic inverters in real time. The software built-in EN50530, Sandia and other 5 kinds of regulatory test procedures, can simulate the solar panel under different parameters of the series parallel test, as well as cloud cover and other tests; It is convenient for users to test the static and dynamic MPPT efficiency of photovoltaic inverters.

|Battery simulation function (optional)

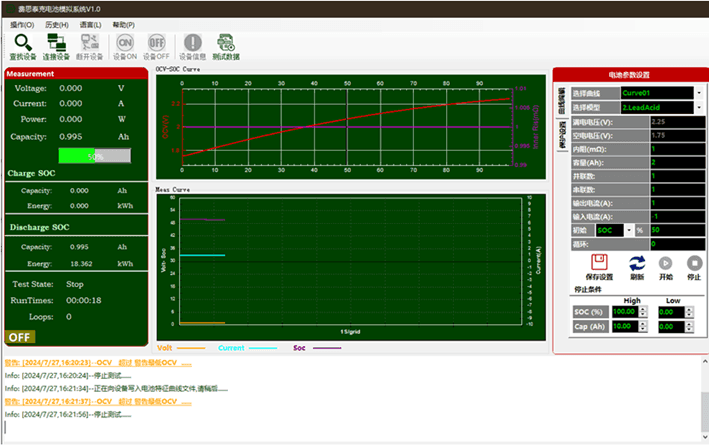

The FTB9000 has a unique current bipolar design, which can simulate the charge and discharge characteristics of the battery for various tests. Under the battery simulation function, users can edit battery files. The battery file mainly describes the characteristic curves of the battery capacity, open circuit voltage and internal resistance of the battery. After the battery simulation function is turned on, it will absorb current (charge) or output current (discharge) according to the external load, and adjust the output voltage to make the output voltage conform to the characteristic curve specified in the file.

|Composite Signal port (Optional)

FTB9000 series optional composite signal port, which has the following functions:

• READY power supply working status indicator;

• Output mode indication;

• Compound external control;

• Voltage and current output monitoring;

• Voltage, current, power programming control;

• Master, slave communication, etc.

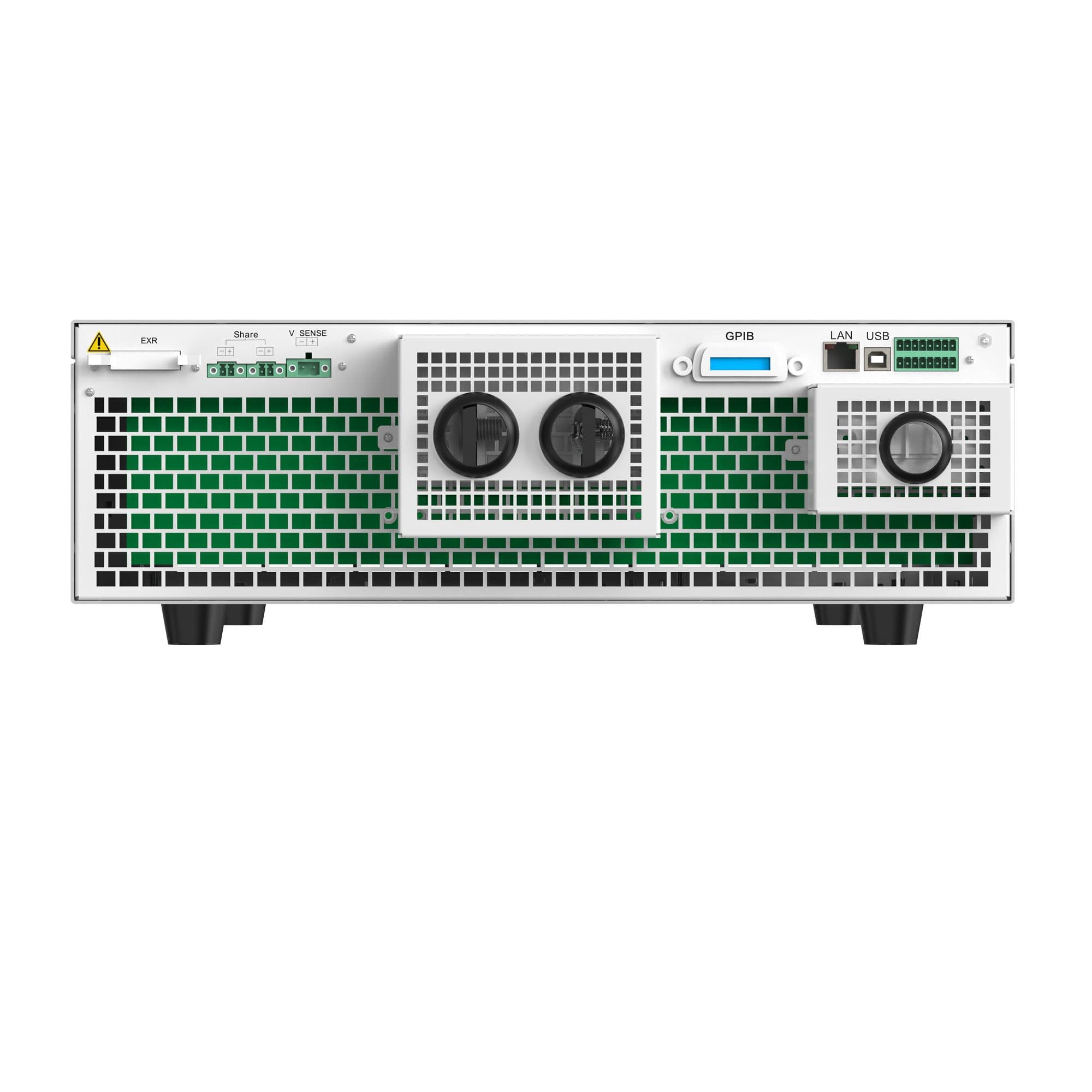

| Multi-interface and Multi-protocol

The FTB9000 series is equipped with a variety of communication interfaces, and supports both SCPI and Modbus communication protocols. Users can configure in the menu according to their needs, which makes the system integration more flexible.

For reference:

| computer graphical operation software

A host computer software platform with the function of virtual instrument can be provided, which can remotely and real-time set test data, read test data, generate images, export reports, print reports, etc., and realize multi-functional test synchronously, so as to facilitate test use.
