FTP1200 series built-in 16bits high precision A/D converter, voltage 0.05%F.S., current 0.05%+0.1%F.S. The measurement accuracy of FTP1200. The measurement valuesof voltage, current and power can be displayed on the display screen of the frontpanel of the power supply at the same time. In addition, FTP1200 provides additional voltage and current monitoring output function, the user can monitor the output waveform of voltage and current through the oscilloscope by monitoring the output terminal.

| remote sensingfunction

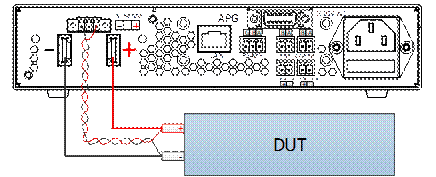

When the load consumes a large current, there will be a voltage drop on theconnection line from the power supply to the load terminal. The remote sensing  automatically compensates for the voltage drop on the load line. The wiring diagram of the remote sensing function power supply measurement is as follows:

(Note: 1000V and above models, do not have remote induction function)

| CV, CC preferred

        When the power output is connected to the inductive or capacitive load, the output current or voltage will overshoot to a certain extent, which will trigger the protection of the device under test, or even damage the device under test. FTP1200series with CV, CC output priority function to effectively inhibit the output overshoot and the impact.

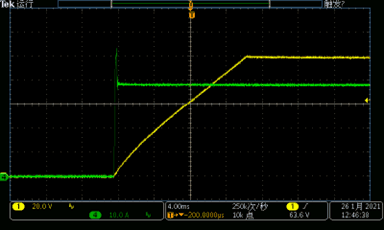

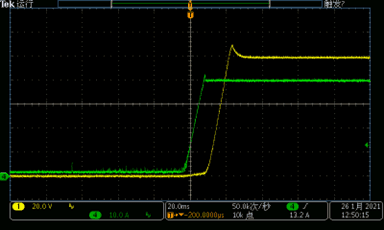

CV priority (highspeedbuildvoltage,currentovershoot)

CC priority (highspeed build current, voltage overshoot)

| Sequence function

        In the sequence output function mode, complex output changes can be simulated according to the sequence parameters edited by the user. Sequence output function, the menu option is "SEQ", which allows users to edit the voltage and current waveform by themselves.

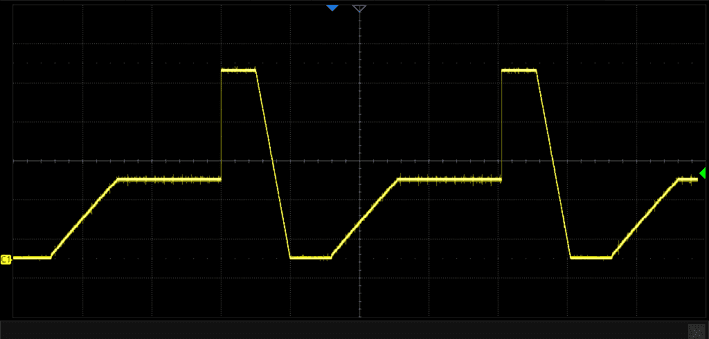

Sequence test output waveform

The FTP1200 series power supply provides 10 sequence files, each supporting up to 100 run steps. In the running steps, you can set the voltage setting, current setting and running time. Support "cycle number" and "link file" properties. "Cyclenumber" can control the number of times the sequence cycle runs, set to 0 to indicate infinite cycle. "Link File" can be implemented in the link between different files to run. Set it to 0 for no link.

| simulates programming features

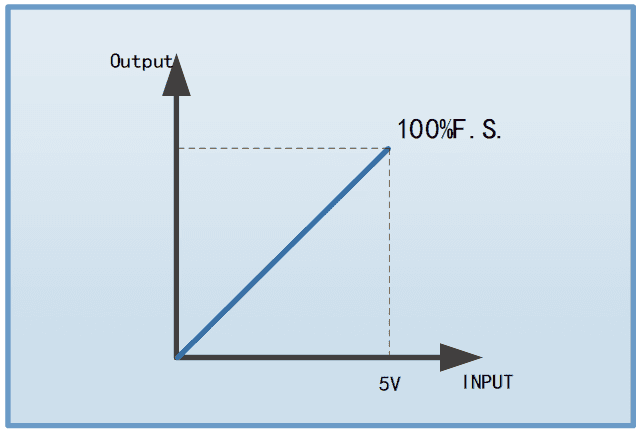

FTP1200 series has two analog input ports, voltage programming and current  programming, which can respectively control the output voltage and output current. The analog programming signal can choose 0 ~ 5V DC voltage signal. The programming signal corresponds to the output voltage and output current of 0 ~100%F.S.

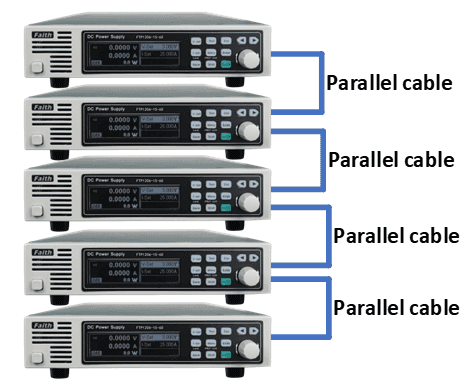

| multi-machine parallel function

The FTP1200 power supply supports up to 5 power supplies in parallel, which greatly expands the application output range of the power supply. Parallel functionin addition to the automatic load between the power supply, to maintain the outputvalue is consistent, but also to ensure the output slope curve or waveform is consistent. In the parallel state of the host, the power supply screen displays thetotal voltage, current and power values. Each slave automatically equalizes current and sums automatically.

| battery internal resistance simulation function

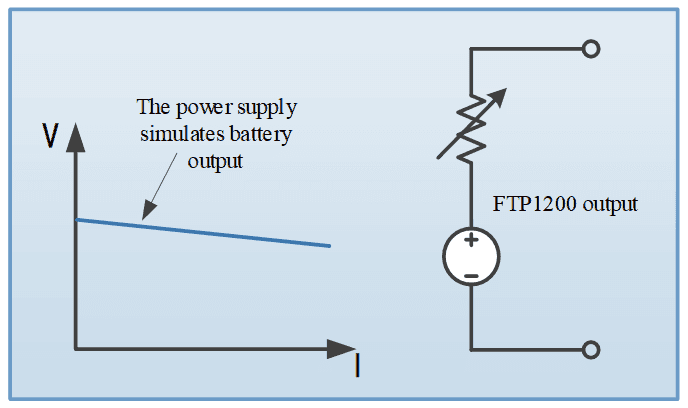

FTP1200 series power supply has the function of simulating battery internalresistance output. When the output current of power supply increases, the output voltage can be adjusted according to the preset internal resistance value.

| computer graphic operatingsoftware

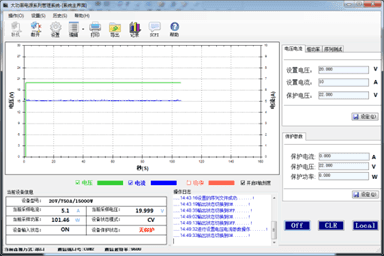

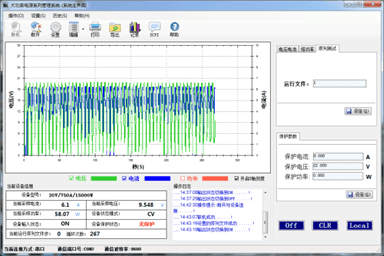

         FTP1200 series provides a host computer software platform with the function of virtual instrument, which can remotely and real-time set test data, read test data, generate images, export data, etc. At the same time, multiple machines can be connected for control respectively, and the functions can be synchronously available for convenient test use.
