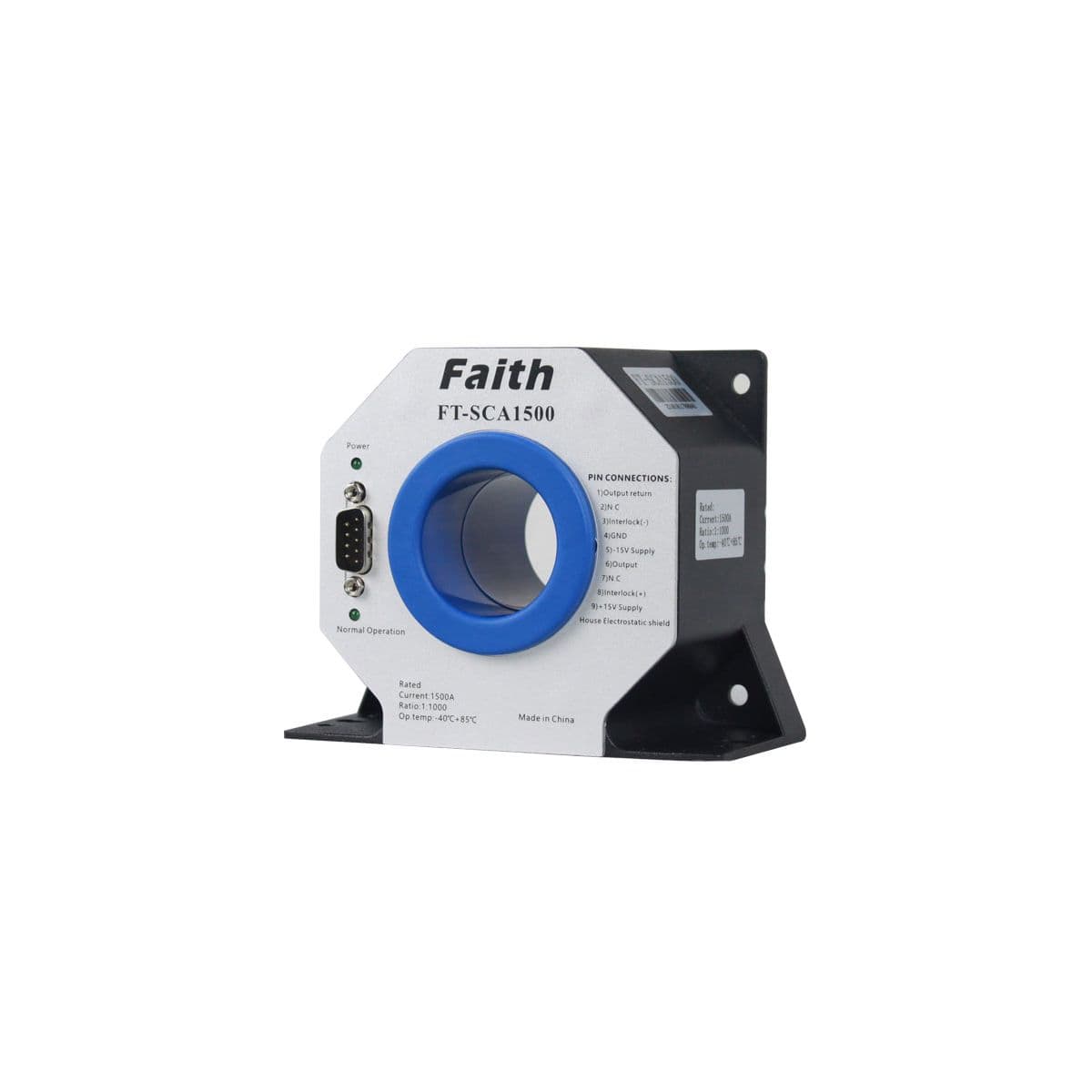

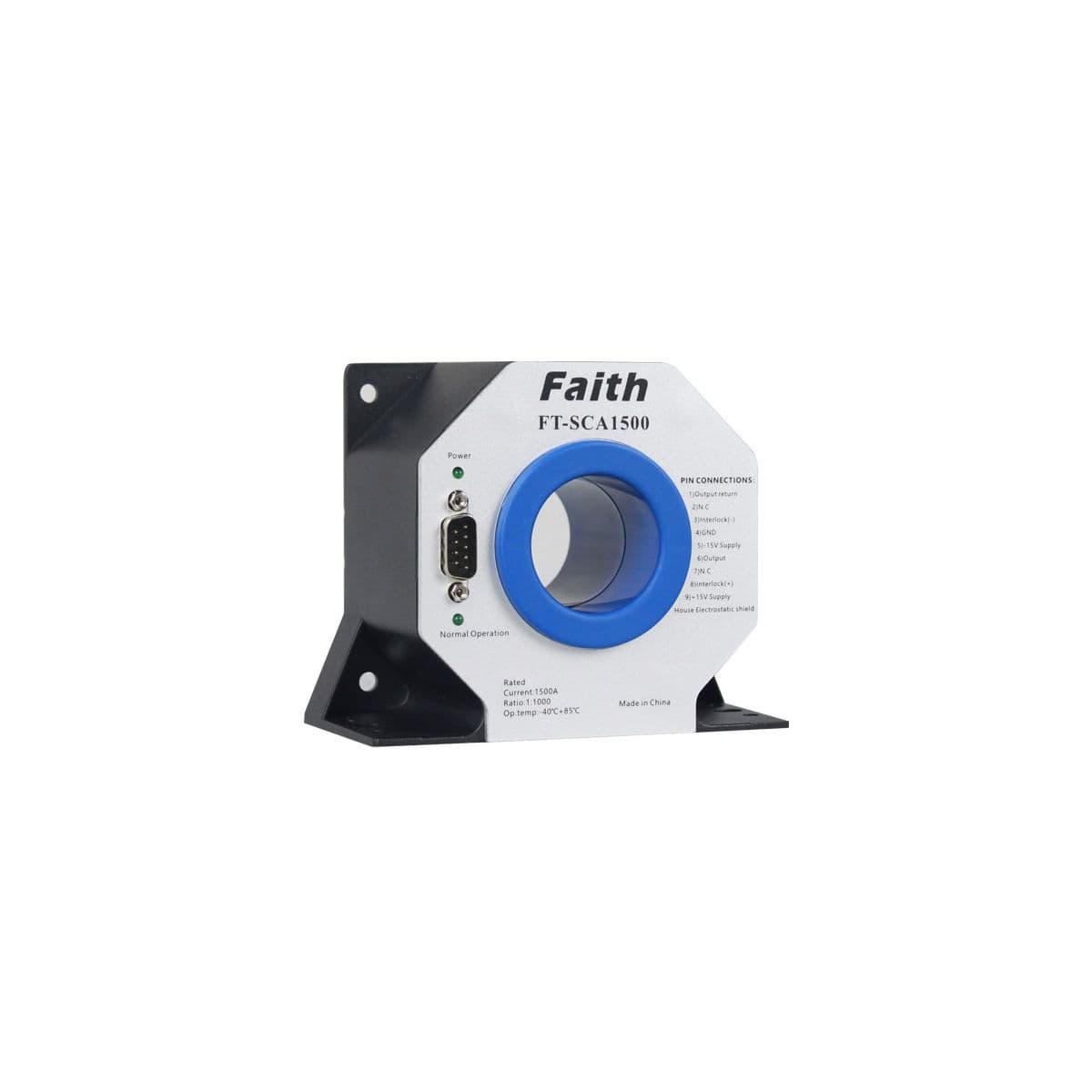

FT-SCA series High precision current sensor

|Summary

FT-SCA  series high-precision current sensor is a current sensor that can measure DC, AC, pulse and various irregular waveforms under the condition that the primary side and secondary side are completely isolated. FT-SCA  series adopts multi-point zero flux technology to control the excitation flux, DC flux and AC flux in a zero flux closed loop, and realizes the detection of high-frequency ripple by constructing a high-frequency ripple induction channel, so that the sensor has relatively high gain and measurement accuracy in the full bandwidth range.

The FT-SCA  series is mainly used in the fields of metrological verification and calibration that require high accuracy, as well as power quality analysis, power analyzer, medical treatment, aerospace, rail transit and other fields that require high sensitivity, stability and reliability.

|Feature

• Adopt multi-point zero flux technology, with high precision, small zero offset and high linearity;
• Current range: ±100A/±200A/±300A/±600A/±1000A/±1500A/±2000A/±3000A/±5000A；
• High precision, current precision 10ppm;
• With temperature compensation technology, the temperature stability is 0.2ppm/K;
• AC/DC universal, which can measure AC, DC and pulse current;
• Primary and secondary side isolation measurement;
• No warm-up time;
• Wide band measurement, with the maximum measurement bandwidth of 500kHz;
• Low response time, minimum dynamic response time 1us

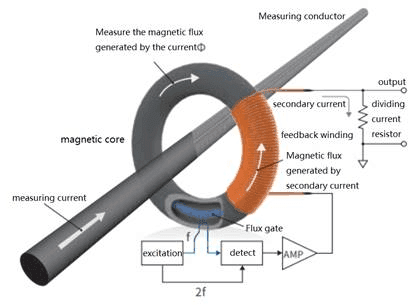

The magnetic core reaches the magnetic balance state by excitation. When the measuring current flows through the wire, breaking the magnetic balance, the flux gate will generate the excitation current, and the signal will drive the compensation coil after amplification, so that the magnetic flux in the magnetic core and the magnetic flux generated by the measuring current will cancel each other and remain in the "zero" state, that is, the so-called "zero flux" state.
