FTM7200 Power Meter

Brief Description

The FTM7200 is a new touch screen power meter with advanced 32-bit high-speed processor and dual-channel 24-bit AD converter. It has the features of high precision, wide dynamic range, compact structure and dexterity. With the continuous introduction of new energy efficiency standards, are around how to improve the energy saving performance of the fierce competition, the product is an essential power measurement instrument for many enterprises to evaluate the energy saving performance of equipment, with high precision, ultra-low standby power consumption measurement and other characteristics, but also support RS232/485,USB communication interface, greatly meet the user's different test communication needs.

Features

• The measuring accuracy reaches 0.2%;
• Large LCD display;
• Communication interface standard with standard USB/RS232/RS485;
• 50 harmonic test;
• Nine test parameters on the same screen display;
• The measurement speed is fast, the fastest 0.1S refresh rate;
• Ac and DC universal broadband range design, DC~ 2kHz bandwidth, better load adaptability;
• Reliable, stable, small size, light weight.

Multi-mode display 50 voltage and current harmonic test data

Can test the absolute harmonics and relative harmonics of voltage and current respectively, three display modes: data list, waveform chart, bar chart.

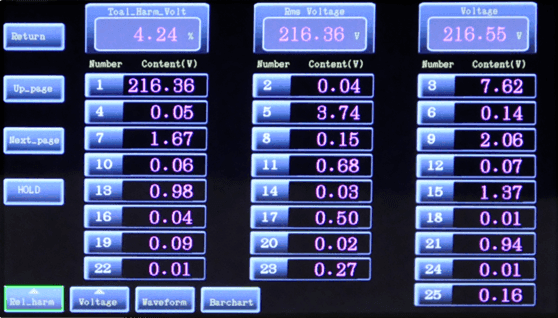

Data list

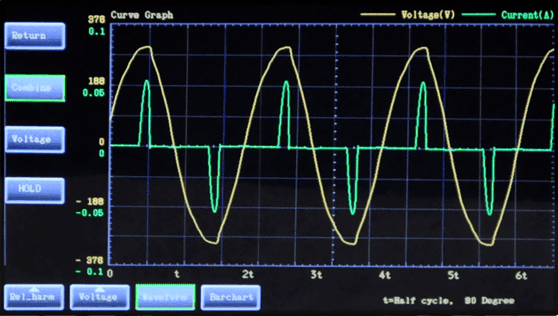

Waveform Chart

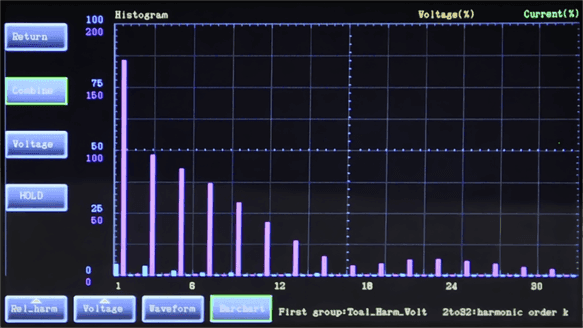

Bar Chart

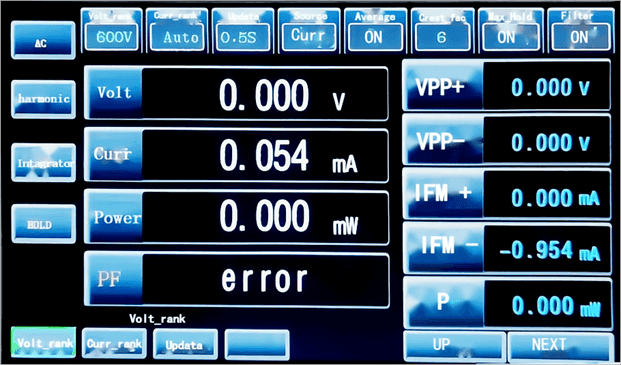

true color LCD large HD display, the test data at a glance

Multiple test parameters and the current setting status can be displayed at the same time, which is convenient for users to monitor and analyze the status of the power supply in real time.

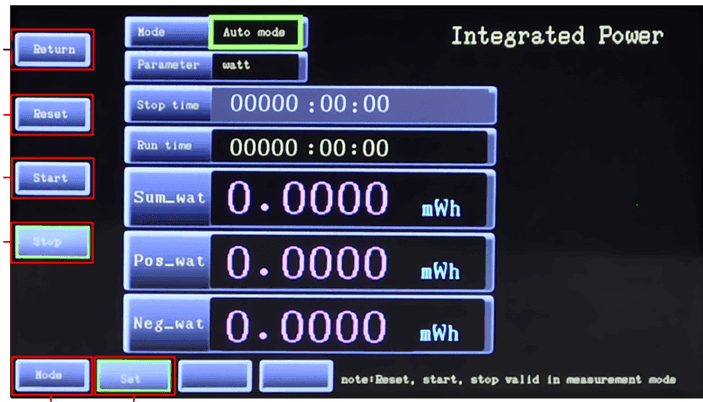

real-time display of electric energy test data

The watt-hour and amp-hour accumulative data can be displayed in real time.
