FT8330 Series Battery cell simulating power supply

|Sketch

FT8330 Series Battery cell simulating power supply is a high-precision, multi-channel, single-quadrant programmable battery analog power supply. The number of single channel is up to 36 and the electrical isolation between the channels is convenient for users to string and power. The characteristics of ultra-high output precision and ultra-low ripple and interference make this series of power supply widely used in battery cell, super capacitor, BMS and other test systems. The FT8330 series uses a standard 19-inch chassis and provides an Ethernet port and RS485 communication interface for easy integration into the R&D and production line automated test platform, or can be used alone

High level of integration

The FT8330 series comes in a standard 19-inch chassis with two specifications. A single 2U chassis can hold up to 24CH, and a 3U chassis can hold up to 36CH. The channels are isolated from each other, and a device can test up to 36 stations at the same time, which can effectively reduce the use of user equipment and improve the test efficiency.

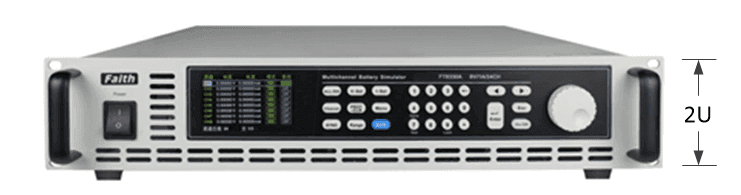

2U/24 channel

|Ultra-high precision

The FT8330 series is highly accurate with a voltage accuracy of 0.01%+0.01%F.S. Voltage resolution as low as 0.1mV and current resolution as low as 0.1μA. For the measurement of power consumption in standby state, the FT8330 has a current resolution of 0.1μA, which can easily measure the standby current of uA level. The FT8330 has a current resolution of 0.1 μa, which can easily measure the standby current of UA level.

|Interchannel series

FT8330 electrical isolation between each channel. When multi-string battery cells need to be simulated, the simulator can support any multi-channel series, or multiple battery cell simulators can be connected in series. Users can also perform remote control and other automatic test applications through the remote interface.

|Dimension Drawing

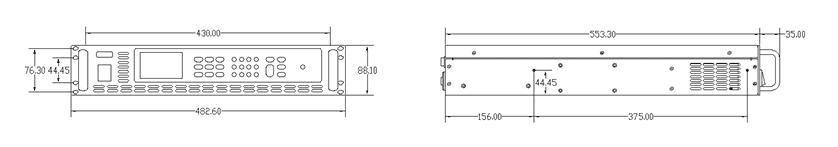

2U model dimension drawing

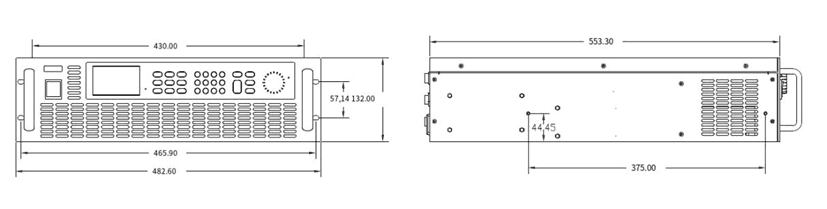

3U model dimension drawing
