The FT8340 Series Battery simulator is a high-precision, multi-channel, dual-quadrant programmable battery simulator. The simulator current can be charged and discharged, and supports a variety of fault simulation, which can not only meet the needs of BMS testing, but also meet the ATE testing of consumer electronics products. Single machine up to 12 channels, each channel electrical isolation, convenient for users in series use. With the upper computer software operation is simple, flexible and easy to use. Support single channel programming operation, multi-channel editing operation and multi-process programming operation.

FT8340 series adopts standard 19-inch chassis, 2U height, and provides dual network port and RS485 communication interface, easy to integrate into the R & D and production line automated test platform, or can be used alone.

|Features

• Voltage range: ±5V/±6V/±15V/±20V (positive and negative voltage series A only);
• Current range: ±1A/±2A/±3A/±5A/±10A;
• Two current ranges, uA level measurement, can be static power testing;
• Independent DVM channel for high precision measurement (Series A only);
• Voltage and temperature drift coefficient less than 25ppm/℃;
• Seamless switching of source and load, powerful battery characteristics simulation function;
• Unique fault simulation function, simulate battery offline, short circuit, reverse connection, etc. (only A series);
• With battery simulation function;
• Isolation between channels, can be used in series;
• Professional testing software, supporting data reports and data analysis;
• RS485 and dual Ethernet control interface;
• And a standard 19-inch, 2U chassis design for easy rack mounting.

| Various battery simulation

        FT8340 series products have various battery simulation functions such as power mode, battery simulation, battery charging test, discharge test, fault simulation etc. Realize one device for multiple purposes, simplify test equipment and optimize test process. The user can also set the curve of cell parameters (SOC, voltage, capacity, internal resistance and other parameters fitting) to simulate the battery output for testing the products to be inspected.

| Static power consumption test

FT8340 has high precision voltage and current measurement. Two current ranges, current accuracy up to 1μA. By supplying power to the product under test through FT8340, the static power consumption of the product under test in standby state can be visually tested, and unqualified products can be screened out.

| Integrated fault simulation function (A series)

The single machine has a maximum of 8 independent output simulator channels, each channel built-in positive/negative short circuit, positive/negative circuit break, polarity reverse connection and other functions. Through direct control of the upper computer software, the external matrix switch components simulating battery failure are omitted, saving space and valuable investment for customers.

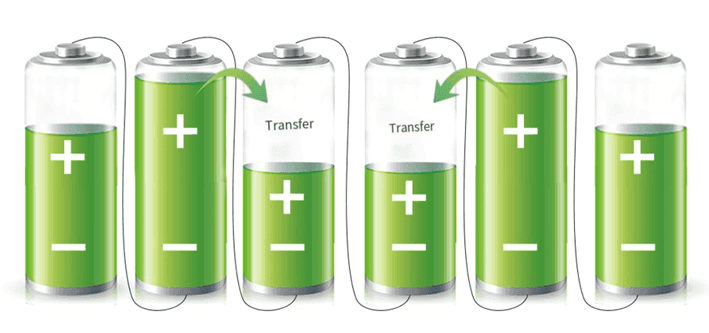

| supports active and passive equilibrium

The FT8340 series adopts bidirectional current design, each channel supports current output and input, and the maximum equilibrium current is 5A. Users can customize the battery charging and discharging model and control it in real time through a special upper computer, which fully meets the requirements of active/passive balance test of BMS.
