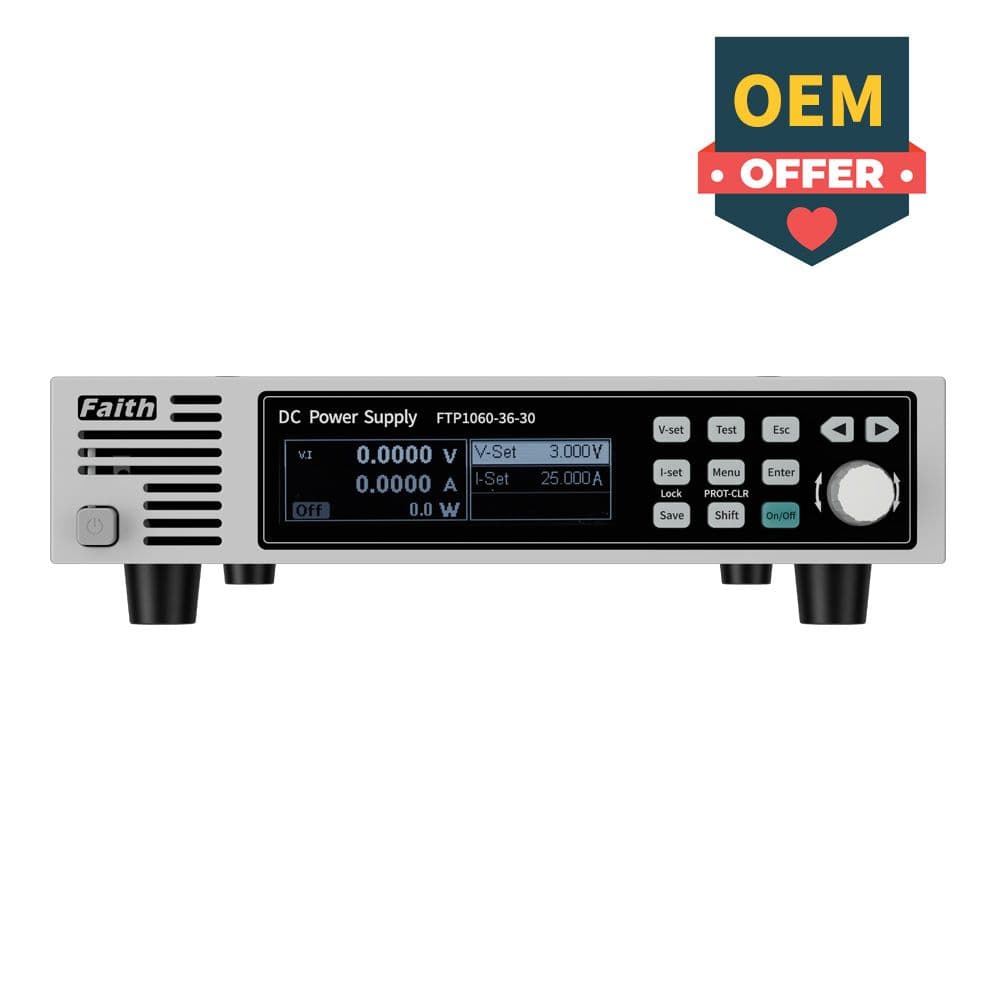

|Sketch

The FTP1000 series programmable DC power supply is a small volume, high performance, high power density DC power supply. The 1U/19 "full width/half width design makes the single machine more portable and the cabinet integration more convenient. The maximum output power is 1800W, which can be used in different fields such as laboratory test, system integration, large-scale production line test.

| Characteristic

• Single machine power output range: 600 w / 900 w / 1500 w / 1200 w / 1800 w.

• Voltage output range: 0 ~ 3000V;

• Single current output range: 0 ~ 120A;

• Small size, 1U/½19 "or full 19";

• Input high power factor, low harmonics;

• Sequence and waveform editing function;

• With battery charging function;

• Over-voltage protection, over-current protection, over-power protection, over-temperature protection and other comprehensive protection functions;

• Support output time setting, can control and record output time;

• Support voltage remote compensation;

• OLED display, wide viewing Angle, high brightness;

• Standard RS232, LAN, RS485; Optional Ether Cat

• Support standard SCPI and Modbus-RTU communication protocols.

|CV, CC preferred

When the power output is connected to the inductive or capacitive load, the output current or voltage will overshoot to a certain extent, which will trigger the protection of the device under test, or even damage the device under test. FTP1000 series with CV, CC output priority function to effectively inhibit the output overshoot and the impact.

CV priority (high speed build voltage, current overshoot)

 CC priority (high speed build current, voltage overshoot)

| Sequence function

In the sequence output function mode, complex output changes can be simulated according to the sequence parameters edited by the user. Sequence output function, the menu option is "SEQ", which allows users to edit the voltage and current waveform by themselves.

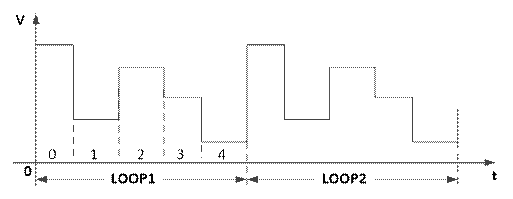

Sequence test output waveform

The FTP1000 series power supply provides 10 sequence files, each supporting up to 100 run steps. In the running steps, you can set the voltage setting, current setting and running time. Support "cycle number" and "link file" properties. "Cycle number" can control the number of times the sequence cycle runs, set to 0 to indicate infinite cycle. "Link File" can be implemented in the link between different files to run. Set it to 0 for no link.

| Remote sensing function

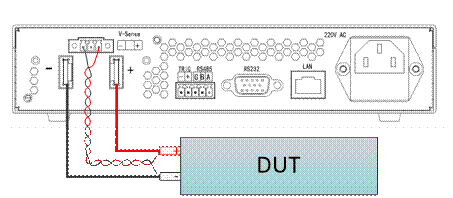

When the load consumes a large current, there will be a voltage drop on the connection line from the power supply to the load terminal. The remote sensing automatically compensates for the voltage drop on the load line. The wiring diagram of the remote sensing function power supply measurement is as follows:

(Note: 1000V and above models, do not have remote induction function)

| Battery charging function

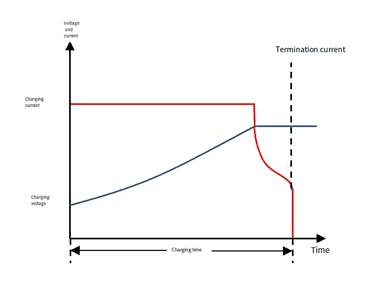

FTP1000 series provides battery charging function, which can define charging voltage, charging current, charging termination voltage, charging termination current, charging termination quantity, charging termination time and other parameters, completely simulate the battery charging process, and effectively protect the battery.

| computer graphical operation software

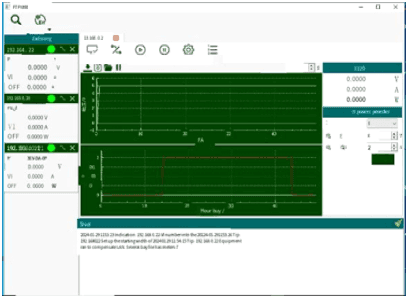

FTP1000 series provides a host computer software platform with the function of virtual instrument, which can remotely and real-time set test data, read test data, generate images, export data, etc. At the same time, multiple machines can be connected for control respectively, and the functions can be synchronized for convenient test use.
