FTP3000 series small power supply is a power supply with high cost performance, super practicality and versatility. It can be widely used in laboratory test, vehicle equipment test, solar inverter test, DC/DC converter and inverter test, engine start test, battery automatic charging, electronic product life cycle and other test links. Product configuration with color screen and Chinese and English menu interface, easy to operate intuitive, is the common configuration of power electronics engineers desk.

| Characteristic

• Single-machine range:

            Voltage: 0 ~ 600V

            Current: 0 ~ 80A

            Power: 900W, 1500W

• 24-bit high resolution ADC measurement;
• Power factor greater than 0.98;
• Stable output, low ripple noise;
• Voltage and current slope can be set;
• Remote line loss compensation;
• Support constant power output;
• Sequence editing function, support cycle and link;
• OPP, OCP, OVP, OTP and other comprehensive protection functions;
• Quick call, one-key call test parameters;
• Isolated composite signal terminal (optional) with strong external control and internal monitoring capabilities;
• Intelligent fan control, reduce noise;
• TFT color LCD display, Chinese and English menu interface;
• Equipped with RS232, LAN, CAN(optional) communication port, support SCPI, ModBus, CAN-OPEN protocol;
• Upper computer software and SDK development kit, convenient for customers to carry out secondary development.

| Voltage and current slope setting

FTP3000 series supports voltage slope setting and current slope setting. The adjustment of the slope slows down the rise and fall of the voltage (or current), which can effectively avoid the damage of the inrush current on the DUT. The voltage slope is measured in V/s and the current slope is measured in A/s.

| Constant power, wide range output

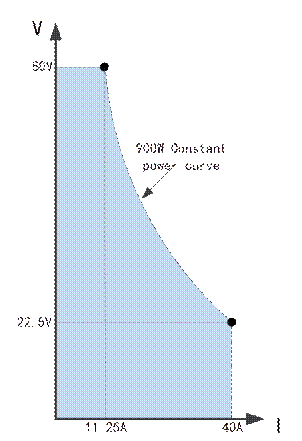

FTP3000 series has an output range of more than 3.5 times wide range and supports constant power output function. After the output is turned on, the power supply constantly adjusts the output voltage or output current to keep the output power constant. If the load exceeds the power supply's adjustment range, the output will be maintained at the maximum set value. (Note: The constant power output function is mainly applied to the load with a response speed of more than 10ms.)

FTP3000 series provides wider operation in constant power range

| serial function

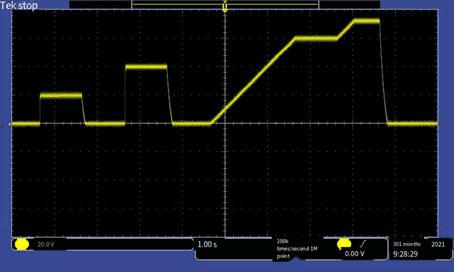

The sequence function allows users to edit their own voltage and current waveforms. The FTP3000 series offers 20 sequence files, each supporting up to 20 running steps. In the run steps, you can set the output voltage, output current, and delay. Sequence function support, support cycle, link and other attributes, to facilitate the realization of complex waveform output.

| Voltage RAMP output function (RAMP)

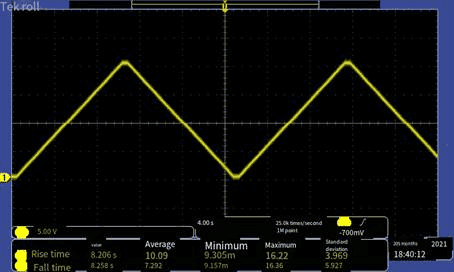

The FTP3000 series supports the voltage RAMP function, which can make the output voltage slowly increase from the low point to the high point, or make the output voltage slowly drop from the high point to the low point. The RAMP function has three working modes: Continuous (Continuous), Pulse (Pulse) and Toggle.

|CV and CC are preferred

When the power output is connected to the inductive or capacitive load, the output current or voltage will overshoot to a certain extent, which will trigger the protection of the device under test, or even damage the device under test. FTP3000 series with CV, CC output priority function to effectively inhibit the output overshoot and the impact.

CV priority (high speed build voltage, current overshoot)

CC priority (high speed build current, voltage overshoot)

| Analog programming functions

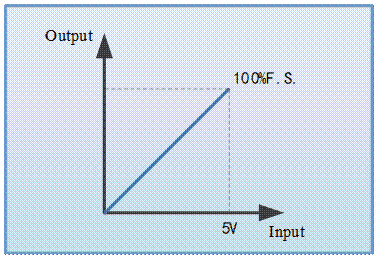

FTP3000 series has two analog input ports, voltage programming and current programming, which can respectively control the output voltage and output current. The analog programming signal is 0 ~ 5V DC voltage signal. The programming signal corresponds to the output voltage and output current of 0 ~ 100%F.S.

| battery internal resistance simulation function

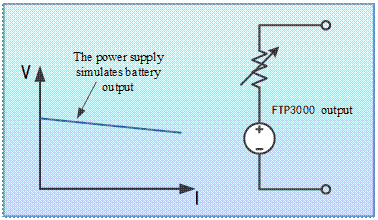

FTP3000 series power supply has the function of simulating the battery internal resistance output. When the output current of the power supply increases, the output voltage can be adjusted according to the preset internal resistance value.

| Composite signal port (optional)

FTP3000 series can be optional composite signal port, which has the following functions:

• READY power supply working status indicator;

• Output mode indication;

• Compound external control (which can be used as a trigger or ON/OFF control signal);

• Voltage and current output monitoring;

• Voltage, current programming control.

| Multi-interface and multi-protocol

The FTP3000 series is equipped with multiple communication interfaces: RS232, LAN, CAN (optional), SCPI and Modbus communication protocols. The user can configure in the menu according to the demand, which makes the system integration more flexible.

| computer graphical operation software

FTP3000 series provides a host computer software with virtual instrument function, which can read test data in real time, generate images, export reports, print reports, etc., for the convenience of customers.
