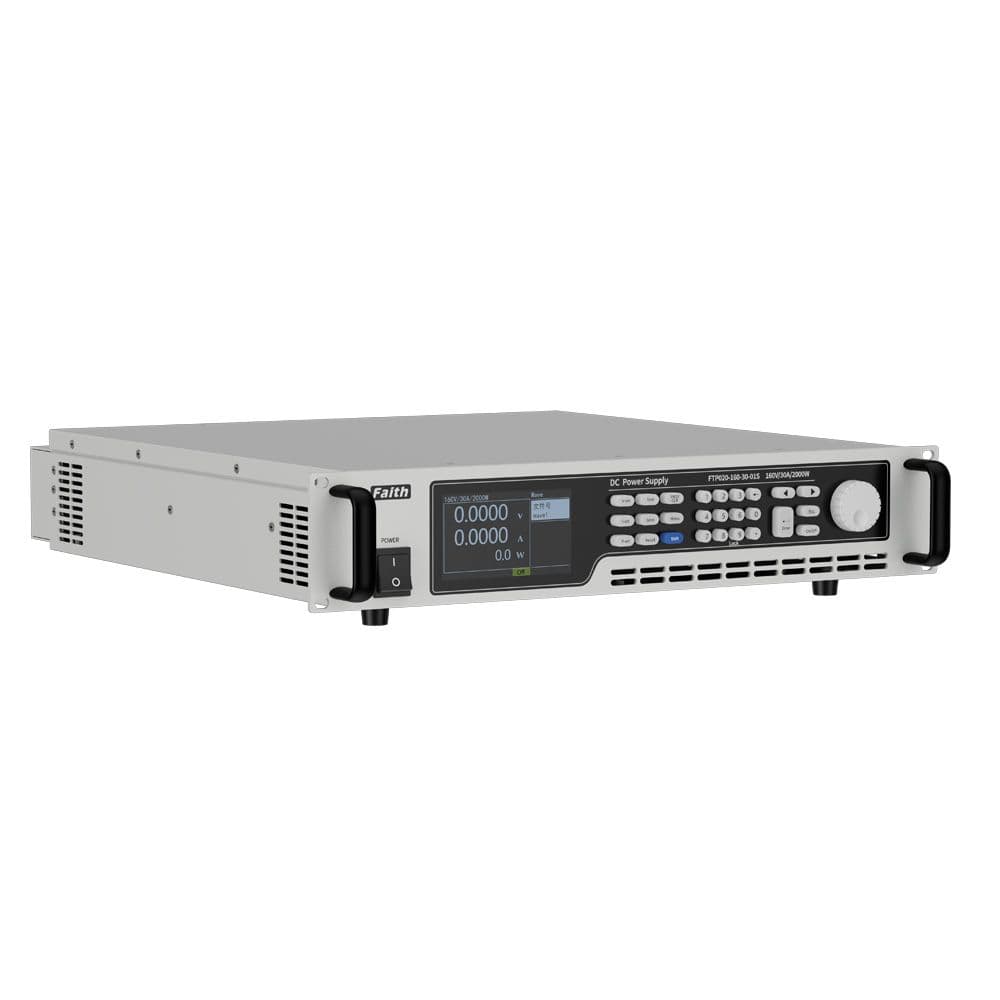

FTP series wide range programmable DC power supply is a high performance DC power supply developed by Faith tech. It has the advantages of wide output range, high current, low ripple noise, fast transient response, high resolution, high precision, and the voltage current slope can be set.

FTP series product line is rich, including 48 different models, 5 power levels, voltage range from 10V to 1500V, it is the best choice for ATE system integration, laboratory testing, vehicle equipment testing, superconducting testing, motor testing, battery charging simulation, voltage and current sensor calibration, laser testing and power supply, electronic product life cycle testing and other applications.

| Characteristic

• Single-machine range:

             Voltage: 0 ~ 1500V

            Current: 0 ~ 800A

             Power: 1.2kW, 1.6kW, 2kW, 3.2kW, 4.8kW, 6.5kW, 8kW

• High precision voltage and current control and measurement;
• High stability: low linear adjustment rate, low load adjustment rate, low ripple, low noise;
• Fast response: transient response of 2ms typical value;
• Slope control: can quickly and accurately control the voltage (or current) rise and fall;
• PFC control: input power factor greater than 0.98;
• Cascade function: support master-slave parallel mode, like the operation of a single power supply to operate the entire cascade;
• Sequence function: Powerful and flexible sequence function, can simulate complex waveform output;
• Quick call: press the digital key to directly call the saved voltage and current parameters;
• Provide a composite signal port with powerful signal monitoring capabilities (optional) :
  • Analog programming: control output voltage and output current through analog quantity;
  • External control: open or close the output through the external digital signal, and the external output digital control number;
  • Monitoring output: the output waveform of voltage and current is output in the form of analog quantity, easy to monitor;
• Remote compensation: compensate the voltage difference caused by the current to ensure the measured value of the voltage at the load end;
• Power-off save: the configuration parameters of the power supply automatically restore to the state when the last shutdown;
• Standard feature rich "Faith power product demonstration platform" software, with basic solar photovoltaic cell simulation function;
• Optional feature-rich "Faith tech Solar PV Matrix Simulation Software" (optional);[1]
• Communication port: standard RS232 and LAN communication port, optional GPIB, RS485, CAN;
• Communication protocol: Support SCPI, Modbus protocol;
• Display operation: TFT color display, support Chinese and English display, convenient and quick key operation;
• Protection function: OVP, OCP, OPP, OTP, LVP, SHUT, FAULT, ALTER and other comprehensive protection function.

| High precision measurement function

FTP series built-in 16bits high precision A/D converter, voltage 0.05%F.S., current 0.1%+0.1%F.S. The measurement accuracy of FTP. The measurement values of voltage, current and power can be displayed on the display screen of the front panel of the power supply at the same time. In addition, FTP provides additional voltage and current monitoring output function, the user can monitor the output waveform of voltage and current through the oscilloscope by monitoring the output terminal.

| constant power, wide range output

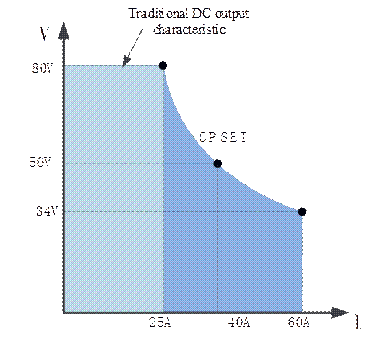

The FTP series has an output range of over 2.4 times wide range. It can automatically adjust the output voltage and current within the set range to achieve constant power output. CP function for solar photovoltaic simulation test, load stability test and protection safety test to provide help.

FTP series provides wider operation in constant power range

| Sequence function

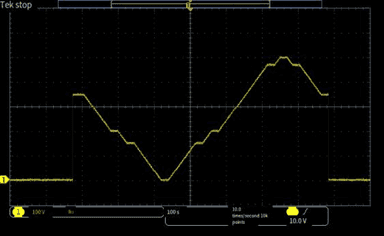

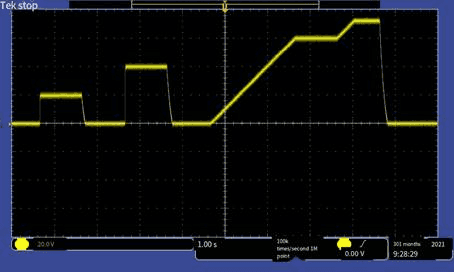

The sequence function allows users to edit their own voltage and current waveforms. The FTP series offers 10 sequence files, each supporting up to 100 run steps. In the run steps, you can set the output voltage, output current, and delay. Sequence function support, support cycle, link and other attributes, to facilitate the realization of complex waveform output.

|CV, CC is preferred

When the power output is connected to the inductive or capacitive load, the output current or voltage will overshoot to a certain extent, which will trigger the protection of the device under test, or even damage the device under test. FTP series with CV, CC output priority function to effectively inhibit the output overshoot and the impact.

CV priority (high speed build voltage, current overshoot)

 CC priority (high speed build current, voltage overshoot)

| Analog programming capabilities

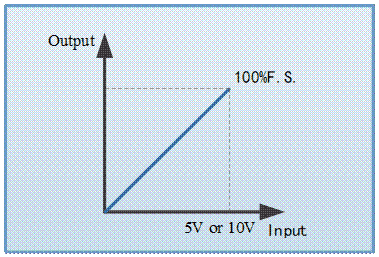

FTP series has two analog input ports, voltage programming and current programming, which can respectively control the output voltage and output current. The analog programming signal can choose 0 ~ 5V or 0 ~ 10V DC voltage signal. The programming signal corresponds to the output voltage and output current of 0 ~ 100%F.S.

| multi-machine parallel function

The FTP power supply supports up to 10 power supplies in parallel, which greatly expands the application output range of the power supply. Parallel function in addition to the automatic load between the power supply, to maintain the output value is consistent, but also to ensure the output slope curve or waveform is consistent. In the parallel state of the host, the power supply screen displays the total voltage, current and power values. Each slave automatically equalizes current and sums automatically.

| battery internal resistance simulation function

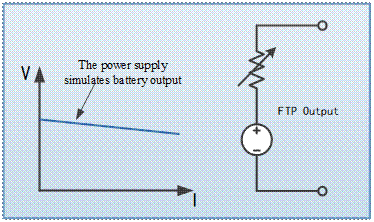

FTP series power supply with battery internal resistance analog output function, when the output current of the power supply increases, the output voltage can be adjusted according to the user's preset internal resistance value.

| photovoltaic battery array simulation function

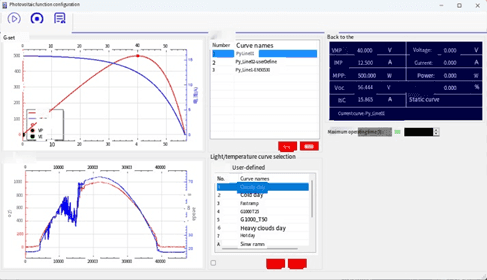

The FTP series comes standard with a feature-rich "Faith Power Demo Platform" with basic PV function for testing PV inverters. With the host computer demonstration platform can achieve more test functions, such as dynamic MPPT, typical weather data, custom light/temperature curve and so on.  If you need more complex photovoltaic test functions, you can choose "Fiesta Solar Photovoltaic Matrix Simulation software".



| Fistek Solar PV Matrix Simulation Software (optional)

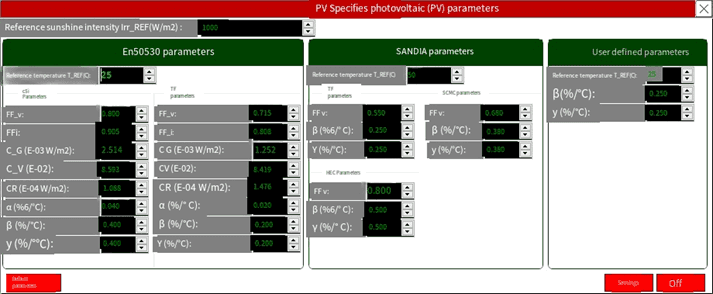

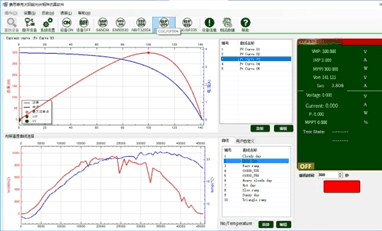

  Faithtech Solar PV Matrix simulation software is a photovoltaic test software supporting Faithtech power supply series. It adopts simple and intuitive graphical interface to present users with intuitive and friendly man-machine interface. Users can easily use the software to output, measure and display the maximum power tracking status and numerical records of photovoltaic inverters in real time. The software built-in EN50530, Sandia and other 5 kinds of regulatory test procedures, can simulate the solar panel under different parameters of the series parallel test, as well as cloud cover and other tests; It is convenient for users to test the static and dynamic MPPT efficiency of photovoltaic inverters.



| Automotive power supply waveform simulation (optional)

Due to the complex electrical environment of the automobile power supply system, the power supply voltage often fluctuates greatly, for example, the motor, solenoid valve and other components start and close. The automotive electronic waveform test function of FTP-C series power supply can realize the simulation function of ISO16750-2 (environmental conditions and tests of electrical and electronic equipment of road vehicles Part 2: Electrical load) and Volkswagen VW80000 electrical and electronic equipment test waveform.



| Composite signal port (optional)

FTP series optional composite signal port, which has the following functions:

• Voltage, current output monitoring;

• Voltage, current programming control;

• Working mode indication;

• Scram control input;

• READY power supply working status indication;

• DC_ON output voltage monitoring, etc.



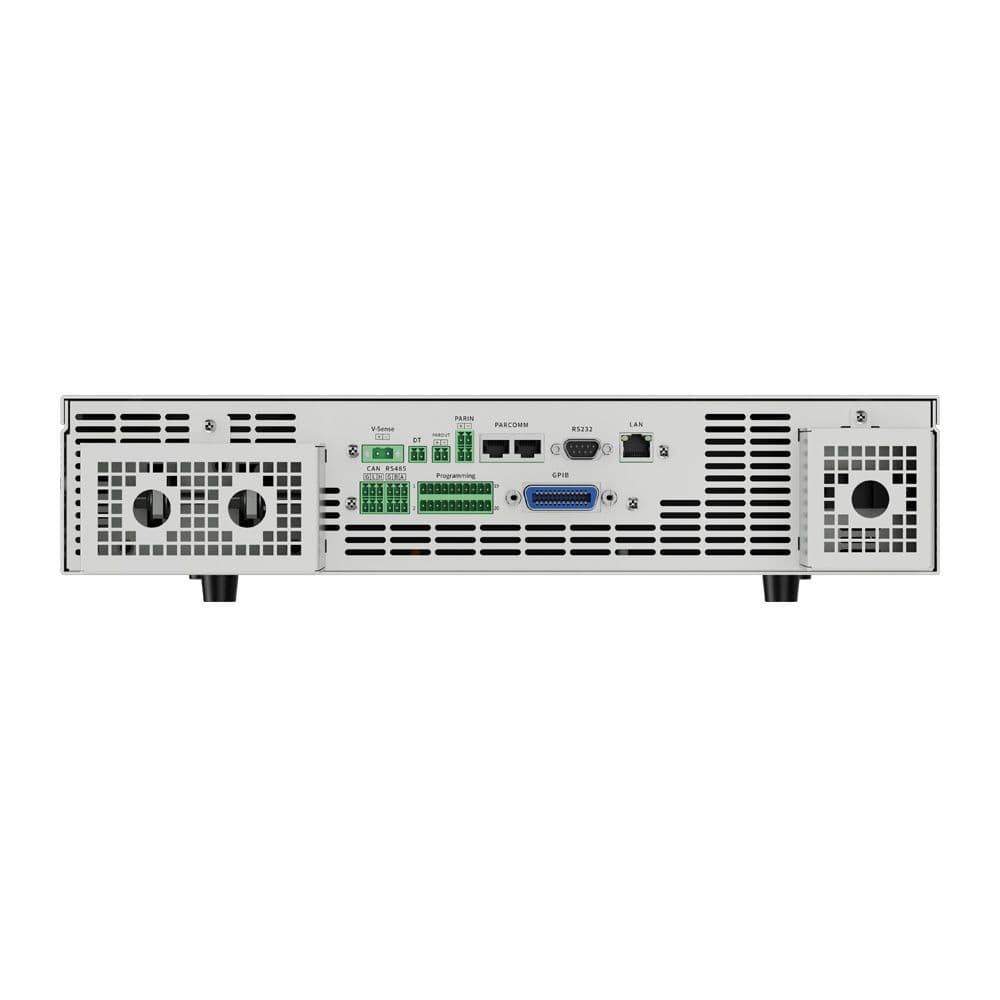

| Multi-interface and multi-protocol

The FTP series is equipped with multiple communication interfaces, and supports SCPI and Modbus two communication protocols. The user can configure it in the menu according to the needs, which makes the system integration more flexible.

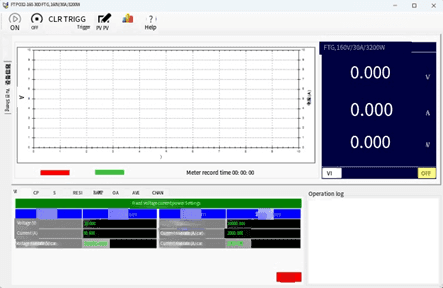

| Computer graphical operation software

FTP series provides a host computer software with virtual instrument function, which can read test data in real time, generate images, export reports, print reports, etc., which is convenient for customers to use.
